Motic VM600 Digital Slide Scanning System

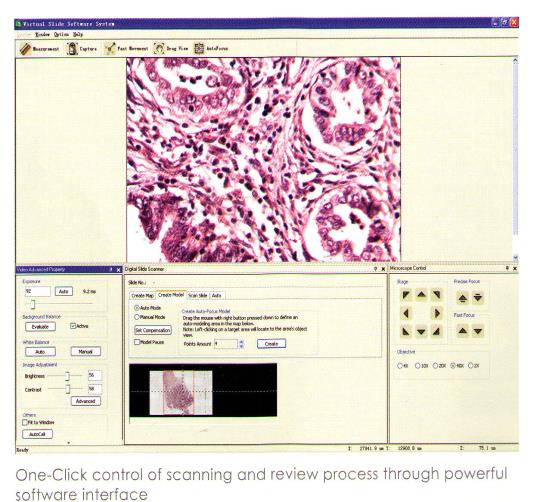

Motic’s VM600 Digital Slide Scanning solution combines a motorized microscope platform with slide scanning and control software enabling a traditional glass slide to be quickly scanned and assembled at various magnifications. These digitally-scanned slides can be viewed on screen similar to the way a traditional slide can be viewed under a microscope. The user can select different objectives (2X, 4X, 10X, 20X, 40X, 60X or 100X) or can seamlessly zoom in and out of the image (1X to 100X). This allows closer inspection of any area of interest without losing image clarity and resolution. Contact DC Imaging for pricing.

Motic’s Virtual Microscopy solution can be extended to multiple viewers when it is connected to a local network. Digital Slides can easily be archived, managed, annotated and diagnosed by a third party without time and geographical limitations. This flexible system can be applied in fields as diverse as Education, Diagnostics in Pathology, Clinical Lab remote consultation and Scientific Research.



COMPONENTS

Auto-Scanning Platform — coordinates the five key automatic functions of the microscope; magnification changing (motor nosepiece), scanning along the X and Y axes, focusing on the Z axis (including auto-focus), and adjusting the intensity of the transmitted light source. Motic has taken great care in ensuring accuracy, reliability and repeatability with this platform. The deviation of its micro-servos for finding repetitive locations is less than 1 micron for X and Y. The precision of the Z-axis focusing drive is 0.015 microns. Coordination of all drives within the software is controlled by a modular control box.



Motic Pro Series True Color CCD — is modular so making upgrades in the future is possible. The standard for this platform is the Motic Pro 285A camera with a 2/3” Sony CCD 12-bit sensor boasting 6.45um square pixels. See more details here.



BA600 microscope — this new model includes a 5 place reversed-style motor nosepiece, LWD condenser for 2X — 100X, trinocular head with 10X eyepieces, and field diaphragm for Koehler illumination.
