HEATING/COOLING STAGES

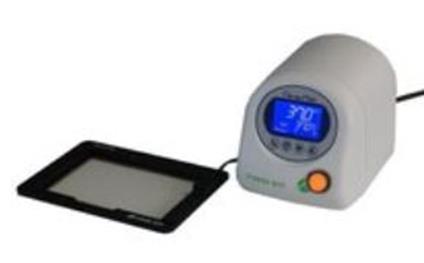

The Tokai Hit ThermoPlate System offers you these advantages:
• Accurate and reliable thermal control of microscope stage
• Enhanced viability of sensitive cell types like oocytes and stem cells
• Thin, optical quality glass allows use with range of objectives and high-quality images
• Sterilizable sensor allows sample temperature measurements
• Compatible with EVOS FL and XL imaging systems

The ThermoPlate System consists of a control unit and a strengthened optical-quality heated glass plate that can be maintained at up to 50°C, with a lower, reliable limit 5°C above ambient. A continuous current control method ensures a highly stable temperature control, with an accuracy of +/- 0.1°C. This prevents thermal drift that may reduce image quality over time-dependent observations at higher magnifications.



INSTEC HOT AND COLD PLATES - Standard sizes of Instec thermal plates range from 20mm to 300mm (custom sizes are available upon request). Temperature ranges for standard models are from -190°C to 600°C, with higher temperature limits available.  Instec hot and cold plates provide ultra temperature uniformity and stability. Instec also offers gas tight covers for defrosting or gas purging.

Temperature Controllers and Accessories

Instec has been manufacturing high precision temperature controllers since 1984. Our mK2000 has the same high temperature precision as the mK1, which was first introduced by Instec in 1984. Yet, it has much more to offer such as a USB communication port, and up to 20 calibration points.  Instec offers liquid nitrogen cooling systems and circulation water pumps as standard cooling options. On a custom basis, Instec can also offer a circulation chiller based cooling option to temperatures as low as -10°C.

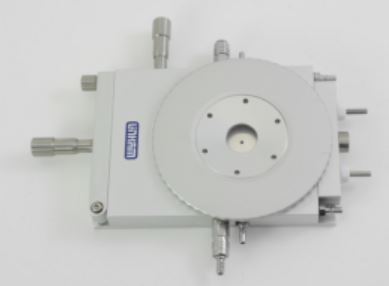

Linkam designs and manufactures scientific instruments to characterize materials from polymers, metals, ceramics, liquid crystals and biological materials.

Applications include:

· Andrology, IVF

· Biology

· Catalysis

· Cryostages, incl. Correlative Microscopy

· Differential Scanning Calorimetry

· Freeze Drying

· Food Science

· Geology

· General heating and cooling applications

· IR microscopy

· Liquid Crystal

· Materials, Metallurgy

· MEMs, Semi Con, Wafer, Electrical Measurement

· Pharmaceutical

· Polymers

· High Pressure

· Raman Microscopy

· Rheology

· Tensile

· Thermal Analysis, DSC

· X-Ray
