INDUSTRIAL STEREO MICROSCOPES |
|

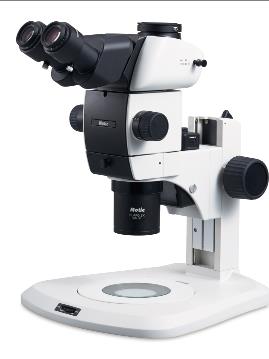

Motic’sSM7 is a modular CMO stereo microscope for use in biomedicine and industrial advanced research work . Accessories and Components can be added in the future for increased capability. This microscope currently goes all the way to 112x Magnification. It can be used on a Boom Stand as well for imaging large parts on a table. The Trinoc version allows you to add a Moticam Color Camera and Motic software for capturing images and making measurements. A Transmitted Light Stand is available as well. For demanding, routine imaging requirements, a Plan-Apochromatic objective 1X (WD 81mm) is available with standard 10X/22 eyepieces, and an 8x to 56x zoom range which offers viewers one of the highest zoom ranges in its class. High-Quality 2D color reproduction and high-resolving power results from the SM7’s superior optical design. Low distortion, longer working distance, multiple lens combinations, superior 10-click mag selector, and ergonomic design offers users the best observation experience across a wide variety of samples. With a versatile observation tube, the SM7 trinocular head is suitable for multiple imaging options; and when combined with Motic’s Analysis software is capable of advanced measurement, EDF compilation, and panoramic tiling. |
|

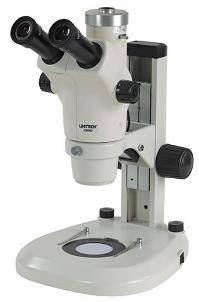

Utilizing a new optical design incorporating a total reflection prism system the Unitron Z650HR delivers higher resolution, higher contrast and brighter images for industrial, biomedical and educational applications than traditional Greenough stereos. With a built-in camera port and a 0.55x c-mount adapter, cameras can be directly mounted to the Unitron Z650HR. Featuring an 8:1 zoom ratio (0.6x – 5.0x), a 115mm working distance and WF10x/23mm focusable eyepieces, the Z650HR is ideal for industrial inspection applications. The Z650HR is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage. |
|

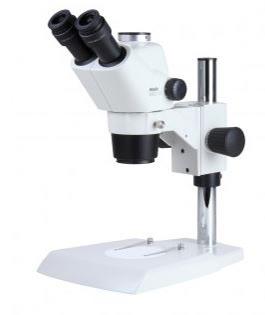

Motic’s SMZ171 optical performance, combined with its expanded accessory line, makes it an ideal instrument for the demanding requirements for both routine and research fields. New materials for ESD compatibility as well as optimized LED illumination options have been added to this series to create a versatile Stereo zoom microscope platform for a wide range of biological and material science applications. · Tilting mirror for transmitted light · New lead free optical design, Greenough optic system, 1:6.7 zoom range · Compact and rugged, Light weight, Anti fungus · LED stand, 3W LED Transmitted Illumination, 3W LED Incident Illumination · Long lasting bulb, lamp life up to 25,000 hrs. · Outstanding price-performance ratio |
|
The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range. The Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage. The Z850 Series is available with either a binocular or trinocular viewing head. · Standard Specifications · 0.8x – 5.0x zoom magnification range · 6.3:1 Zoom ratio · Magnification range 8x-50x (with 10x eyepieces) · 45° viewing angle · 115mm working distance · Interpupillary Distance Adjustment 52mm – 75mm · WF10x/22mm focusing eyepieces · Field of view 27.5mm-4.4mm
|
