THE MOTIC AE 20/21 & AE30/31 SERIES PROVIDES YOU WITH EXCELLENT

OPTICAL QUALITY AND UNMATCHED OPERATIONAL CONVENIENCE

COLOR CORRECTED INFINITY OPTICAL SYSTEM
The CCIS optics allows new accessories and functions to be incorporated into the AE 20/21 and AE30/31 inverted microscopes.

The CCIS infinity design has succeeded in achieving longer working distance objectives with higher numerical apertures. This represents a significant development in optical performance and versatility.



THE MICROSCOPE STAND

The design of the inverted microscopes optimally integrates all functions enabling effective ergonomics and maximum expandability.

The wide base provides strength and rigidity. In addition, the inverted "Y" support in the back of the microscope provides extra lateral stability.

The AE 20/21 and AE30/31 have been designed to meet the needs of demanding users. The size of the microscope is compact to minimize the footprint and conserve limited desk space available in modern laboratories.

The ergonomic design has made the AE20/21 and AE30/31 compatible with the manner in which you work. The coaxial coarse/fine focusing knobs, controls for the attachable mechanical stage and light intensity, are placed conveniently at your fingertips to minimize user fatigue. The ideally positioned focus knobs and stage controls make their manipulation stress free.



THE LIGHT SOURCE

The 30W halogen light source provides bright, even illumination at any magnification. A segmented illumination intensity indicator is ideally located for easy viewing.



THE REVOLVING NOSEPIECE

The revolving side facing nosepiece accepts four (AE20/21) or five (AE30/31) objectives. It runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification.



PRICING

AE20 Binocular Inverted Microscope with 10X/20 eyepieces, quadruple nosepiece, Plan 4X, Plan Phase 10X and 20X, Plan 40X, ELWD 0.30NA Phase condenser, blue and green filters       from $2250



AE21 Trinocular Inverted Microscope with 10X/20 eyepieces, quadruple nosepiece, Plan 4X, Plan Phase 10X and 20X, Plan 40X, ELWD 0.30NA phase condenser, blue and green filters       from $2500



AE30 Binocular Inverted Microscope with 10X/22 eyepieces, quintuple nosepiece, Plan 4X, Plan Phase 10X and 20X, ELWD 0.30NA phase condenser, phase centering telescope, blue and green filters     from $2700

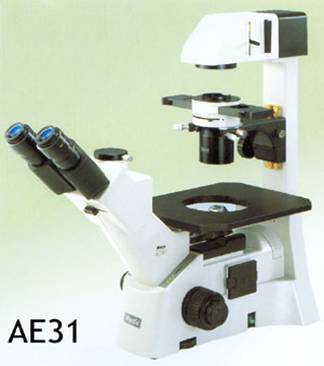

AE31 Trinocular Inverted Microscope with 10X/22 eyepieces, quintuple nosepiece, Plan 4X, Plan Phase 10X and 20X, ELWD 0.30NA phase condenser, phase centering telescope, blue and green filters       from $3050.00



AVAILABLE ACCESSORIES

1X, 0.65X, 0.50X Camera Couplers

15X Eyepieces

40X LWD Plan objective, 40X LWD Plan Phase objective

LWD 0.50NA Condenser   (AE30/31)

Attachable Mechanical Stage with holders

35mm, 54mm, 65mm Petri dish holders, Hemacytometer holder, 1X3 slide holder



FLUORESCENCE ILLUMINATORS (AE30/31)

100W Mercury Epi-Fluorescence Attachment, with lamphouse, power supply  from $3600

Fluorescence Filter Cubes   from $825

100W mercury bulb, 300 hr lifetime  $150



OPTIONAL FLUORESCENCE ILLUMINATOR (AE30/31)                                    OPTIONAL IMAGING ACCESSORIES (AE30/31)

120W Mercury-Xenon Illuminator with microscope coupler   $4199             Filter Wheel/Shutter (Excitation and Emission)

Fluorescence Filter Cubes   $650 – $925 each                                           Hoffman Modulation Optics

120W Mercury-Xenon bulb, 2000 hr lifetime  $700                                     Multiport Accessory (for two imaging ports)





DC Imaging, LLC

Home        Contact Us          Upright Microscopes      Inverted Microscopes    Stereo Microscopes

Digital Cameras    Microscope Accessories    Training       Used Eqpt

Research Fluorescence Inverted Microscopes

KXD200 Inverted Phase Contrast Microscope

Available in binocular or trinocular versions, the KXD200 includes LWD 4X, 10X, 20X and 40X Phase Contrast objectives, mechanical stage, 30W halogen illuminator with rheostat, phase telescope and filters



Binocular model  -  $1500    Trinocular model  -  $1600



Optional items — Fluorescence illuminator, digital camera system

Contact for Regional Discounts
