MOTIC STEREO MICROSCOPES

SMZ-168 SERIES ADVANCED ZOOM STEREO LED MICROSCOPES

35° inclined and 360° rotating head for flexible and comfortable viewing
Eyepiece: Standard WF10X / 23mm
Diopter adjustment for both eyepiece tubes: ±5
Adjustable interpupillary distance from 52mm to 79mm
Zoom range: 0.75X - 5X
Zoom ratio: 1:6.7
Working distance: 113mm

Ball bearing type focusing mechanism provides an accurate, smooth and stable focusing system with focusing range 50mm. Streamlined base stand with 3W LED incident/transmitted illumination.

Price for SMZ-168 Binocular  from $975                      SMZ-168 Trinocular  from $1025

Price for Binocular LED version - from $1090              Trinocular LED version — from $1170



SMZ-140 SERIES ZOOM STEREO MICROSCOPES

Binocular/Trinocular head 45° inclined, 360°rotating

Widefield eyepiece WF10X (FN 20) (paired)

Zoom range : 1X – 4X

Top light 12V/15W halogen bulb and bottom light 12V/10W halogen bulb with intensity control

Main supply 220V-240V

Price for SMZ-140 Binocular  from $550                  SMZ-143 Trinocular  from $625

              SMZ-140 LED Binocular  from $850            SMZ-143 LED Trinocular  from $900

K-700L SERIES ZOOM STEREO MICROSCOPES

Zoom binocular head

Standard objective 1.0x

Zoom ratio 1:5.2

Incident halogen light 12V/15W and transmitted halogen light 12V/10W, with intensity control

Main supply 220V-240V

K-700L Price   from $1350                 K-700P (Same as K-700L w/o illumination)  from $1250

K-500L SERIES STEREO MICROSCOPES

Binocular head

Standard objective 1.0X

Magnification changer 6.4x, 10x, 16x, 25x and 40x

Eyepieces : widefield 10x (FN23) (paired)

Incident halogen light 12V/15W and transmitted halogen light 12V/10W, with intensity control

Main supply 220-240V

K-500L Price  from $1050                 K-500P (Same as K-500L w/o illumination)  from $930

Fiberoptic & Mechanical

Stage Products

Contact for Regional Discounts

2108 Ball Bearing Boom Stand

2105I Industrial Arm Boom Stand

2105S Universal Boom Stand

2110 Table Clamp Stand

SMZ-161 and SMZ-171 GREENOUGH STEREO MICROSCOPES

Binocular/Trinocular head 45° inclined, 360°rotating

Widefield eyepiece WF10X (FN 23) (paired)

Zoom range : 171  -  0.75X-5X (1:6.7)     161  -  0.75X-4.5X (1:6)

Price for SMZ-161 Binocular  from $625                  SMZ-161 Trinocular  from $700

              SMZ-171 Binocular  from $910                            SMZ-171 Trinocular  from $975

DC Imaging, LLC



Microscopes – Imaging Products - Service - Training

Office: 7561 Easy St   Unit C   Mason, OH  45040

  Phone: (513) 404-6299    Fax: (206) 984-1858

Email: info@dcimaging2000.com

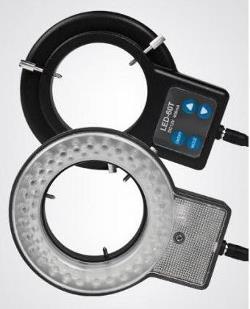

LED Ringlights



1101002402691        LED ring illumination 60T-B dimmable     $85.00

1101002402701        LED ring illumination 60T dimmable and segmentable     $170.00



Description

· Standard version with 60 LEDs with full intensity control

· Power supply 100-240 V, 50/60 Hz

· 12V DC Output Voltage

· Internal Diameter 60mm ring

· Ring outside diameter 100mm

· 30mm Thickness ring

· Adjusting Brightness 0-100%

· Lighting zones without selectable segments

· Gloss 100mm working distance of 15000 lux

· Working distance of 50-150mm

· Color temperature 6800K
